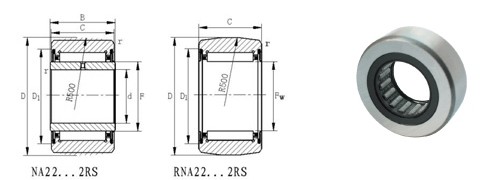

支撑型无内圈滚轮 RNA22..-2RSR

无轴向引导,两侧唇密封

支承滚轮轴承Needle Roller Track Roller Bearings

RNA22 ...2RS,NA22…2RS 系列

外径 型号 重量 型号 重量 尺寸 基本额定载荷 极限转速
Outside Designation Mass Designation Mass Dimensions Basic Load Ratings Limiting
Diameter (不带内圈) (带内圈) d D C B Fw D1 r r1 动 Cr 静 Cor Speed
F Dynamic Static grease
mm g g min. min. kN kN rpm
19 RNA22/6.2RS NA22/6.2RS 6 19 11.8 12 10 16 0.3 0.3 4.8 4.6 ——
24 RNA22/8.2RS   NA22/8.2RS   8 24 11.8 12 12 16 0.3   4.8 4.6
30 RNA2200.2RS 52 NA2200.2RS 60 10 30 13.8 14 14 20 0.6 0.3 8.0 8.5 5500
32 RNA2201.2RS 57 NA2201.2RS 67 12 32 13.8 14 16 22 0.6 0.3 7.5 9.0 4700
35 RNA2202.2RS 60 NA2202.2RS 75 15 35 13.8 14 20 26 0.6 0.3 8.2 9.6 3400
40 RNA2203.2RS 94 NA2203.2RS 112 17 40 15.8 16 22 28 1.0 0.3 9.7 10.8 3000
47 RNA2204.2RS 152 NA2204.2RS 177 20 47 17.8 18 25 33 1.0 0.3 15.2 18.3 2300
52 RNA2205.2RS 179 NA2205.2RS 209 25 52 17.8 18 30 38 1.0 0.3 15.7 20.0 1800
62 RNA2206.2RS 284 NA2206.2RS 324 30 62 19.8 20 35 43 1.0 0.6 18.4 25.5 1400
72 RNA2207.2RS 432 NA2207.2RS 505 35 72 22.7 23 42 50 1.1 0.6 31.8 45.7 1100
80 RNA2208.2RS 530 NA2208.2RS 628 40 80 22.7 23 48 57 1.1 0.6 27.5 40.5 850
85 RNA2209.2RS 545 NA2209.2RS 655 45 85 22.7 23 52 62 1.1 0.6 28.5 43.0 800
90 RNA2210.2RS 563 NA2210.2RS 690 50 90 22.7 23 58 68 1.1 0.6 43.2 70.0 650
说明:
1.表中所列基本额定载荷、极限转速和重量,仅供选择参考用。
2.轴承的唇密封,允许工作温度:120℃连续。
3.脂润滑时,极限转速为表列数值的60%。
Note:
1.These load, speed and mass is reference of choice only.
2.If the cages are plastics,syffix"TN" is added to the bearing No.,the maximum allowable
working themperrature is +120℃ in continuous working and 180℃ in short time working.
3.With grease lubrication, 60% of these limiting speed will apply.



d
mm
D
mm
B
mm
NA22/6-2RSR 6 19 12
NA22/8-2RSR 8 24 12
NA2200-2RSR 10 30 14
NA2201-2RSR 12 32 14
NA2202-2RSR 15 35 14
NA2203-2RSR 17 40 16
NA2204-2RSR 20 47 18
NA2205-2RSR 25 52 18
NA2206-2RSR 30 62 20
NA2207-2RSR 35 72 23
NA2208-2RSR 40 80 23
NA2209-2RSR 45 85 23
NA2210-2RSR 50 90 23
d
mm
D
mm
B
mm
d
mm
D
mm
B
mm
NA22/6-2RS 6 19 12
NA22/8-2RS 8 24 12
NA2200-2RS 10 30 14
NA2201-2RS 12 32 14
NA2202-2RS 15 35 14
NA2203-2RS 17 40 16
NA2204-2RS 20 47 18
NA2205-2RS 25 52 18
NA2206-2RS 30 62 20
NA2207-2RS 35 72 23
NA2208-2RS 40 80 23
NA2209-2RS 45 85 23
NA2210-2RS 50 90 23
d
mm
D
mm
B
mm

目前我司生产的滚轮轴承,曲线滚轮轴承,已出口到美国,英国,欧州等国家和地区,深得客户的好评.现在我司已经大量开发了多款英制滚轮轴承,轨迹滚轮轴承,包装曲线滚轮轴承,支承滚轮轴承,螺栓型滚轮轴承,和滚轮滚针轴承.型号主要有 CF4,CF5,CF6,CF8,CF10,CF10-1,CF12,CF16,CF18,CF20,CF20-1,CF24,CF24-1,CF30,CF30-1,CF30-2。等等

重負荷凸輪從動軸承 重負荷滾子從動軸承
McGILL INA FAG NTN McGILL INA FAG NTN
MCFD-35 NUKR-35 MCYRD-15 NUTR-15 NUTR-202
MCFD-40 NUKR-40 MCYRD-17 NUTR-17 NUTR-203
MCFD-47 NUKR-47 MCYRD-20 NUTR-20 NUTR-204
MCFD-52 NUKR-52 MCYRD-25 NUTR-25 NUTR-205
MCFD-62 NUKR-62 MCYRD-30 NUTR-30 NUTR-206
MCFD-72 NUKR-72 MCYRD-35 NUTR-35 NUTR-207
MCFD-80 NUKR-80 MCYRD-40 NUTR-40 NUTR-208
MCFD-90 NUKR-90 MCYRD-45 NUTR-45 NUTR-209
MCYRD-50 NUTR-50 NUTR-210
其它凸輪從動軸承和凸輪軛軸承編號
可選用部份 McGILL INA SKF THK IKO NTN
密封圈 加後綴 " S " 加後綴 " PP " 加後綴 " UU " 加後綴 " UU " 加後綴 " LL "
圓柱外徑 加後綴 " X " 加後綴 " X " 去除後綴 " R " 去除後綴 " R " 加後綴 " X "
六角孔 加後綴 " B " 加後綴 " SK " 加後綴 " A " 加後綴 " B " 加後綴 " H "
偏心環 加後綴 " E " 加後綴 " E " ------------ 加後綴 " E " ------------

支承滚轮滚针轴承系厚壁外圈,经高温高氮淬火,高精密分选的滚子由高刚性外圈的挡边引导,利用线状接触,滚轮可以直接在滚道上轻松转动,并可以承受巨大的载荷。为去除应力,支撑滚轮的外圈采用弧面设计,曲线滚轮有带单、双密封圈、不带密封圈、带密封环等各种规格型号。带密封圈存储润滑脂空间大、提供锂基脂长久性润滑,并延长润滑间隔。密封圈材质为带骨架丁腈橡胶或ST12,其运转温度范围为-30°C至+100°C或-30°C至+180°C 。密装式的曲线滚轮可承受较重的极强载荷和高性能运转。

RSTO

外圈无挡边,无内圈支承滚轮

STO

外圈无挡边,有内圈支承滚轮

RNA22...2RS

双面密封,无内圈支承滚轮

NA22...2RS

双面密封,有内圈支承滚轮

NATR

NATR...PP

平挡圈轴向引导支承滚轮

NATV

NATV...PP

平挡圈轴向引导支承滚轮,满针型

NUTR

滚动体引导支承滚轮,满滚子型

CRY

英制平挡圈轴向引导支承滚轮

英制滚轮请点此

轴径 穿孔型 封口型 尺寸 基本额定载荷 极限转速
Shaft Open end Closed end Dimensions Basic Load Ratings Limiting
Diameter 单面密封型号 重量 双面密封型号 重量 带密封型号 重量 Fw D C C1 C2 r 动 Cr 静 Cor Speed
  Designation Mass Designation Mass Designation Mass             Dynamic Static
  with Sealed   with Sealed   with Sealed
mm on one side g on both sides g   g         min. min. kN kN rpm
10 HK1012 RS 4.5 HK10142RS 4.6 BK1012RS 4.6 10 14 12 14 9.3 0.4 4.4 5.1 17000
12 HK1214 RS 10.0 HK12162RS 11.0 BK1214RS 11.5 12 18 14 16 11.3 0.8 6.5 7.3 14000
14 HK1414 RS 12.0 HK14162RS 13.0 BK1414RS 13.0 14 20 14 16 11.3 0.8 7.1 8.5 12000
15 HK1514 RS 12.0 HK15162RS 14.5 BK1514RS 14.5 15 21 14 16 11.3 0.8 7.8 9.8 11000
  HK1518 RS 16.0 HK15202RS 18.0 BK1518RS 18.0 15 21 18 20 15.3 0.8 10.5 14.4 11000
16 HK1614 RS 13.0 HK16162RS 15.0 BK1614RS 15.3 16 22 14 16 11.3 0.8 7.6 9.7 11000
  HK1618 RS 14.5 HK16202RS 17.0 BK1618RS 17.5 16 22 18 20 15.3 0.8 8.9 11.3 11000
18 HK1814 RS 14.0 HK18162RS 15.0 BK1814RS 16.0 18 24 14 16 11.3 0.8 8.1 10.9 9500
20 HK2014 RS 17.0 HK20162RS 19.0 BK2014RS 20.0 20 26 14 16 11.3 0.8 8.6 12.1 8500
  HK2018 RS 21.5 HK20202RS 23.5 BK2018RS 24.5 20 26 18 20 15.3 0.8 12.7 20.1 8500
22 HK2214 RS 16.0 HK22162RS 18.0 BK2214RS 19.0 22 28 14 16 11.3 0.8 9.1 13.4 8000
  HK2218 RS 24.0 HK22202RS 26.0 BK2218RS 27.0 22 28 18 20 15.3 0.8 13.4 22.1 8000
25 HK2514 RS 26.0 HK25162RS 27.0 BK2514RS 28.0 25 32 14 16 11.3 0.8 11.0 15.2 7000
  HK2518 RS 29.0 HK25202RS 31.0 BK2518RS 34.0 25 32 18 20 15.3 0.8 15.6 24.0 7000
30 HK3018 RS 37.0 HK30202RS 39.0 BK3018RS 40.0 30 37 18 20 15.3 0.8 17.2 29.0 6000
35 HK3518 RS 39.0 HK35202RS 41.0 BK3518RS 43.0 35 42 18 20 15.3 0.8 18.7 33.5 5000
40 HK4018 RS 45.0 HK40202RS 48.0 BK4018RS 50.0 40 47 18 20 15.3 0.8 20.0 38.5 4500
45 HK4518 RS 50.0 HK45202RS 54.0 BK4518RS 56.0 45 52 18 20 15.3 0.8 21.3 43.0 4000
说明:
1.表中所列基本额定载荷、极限转速和重量,仅供选择参考用。
2.轴承的保持架如由塑料制成,在型号后加TN,允许工作温度:120℃连续,180℃短期。
3.脂润滑时,极限转速为表列数值的60%。

Note:
1.These load, speed and mass is reference of choice only.
2.If the cages are made of plastics, suffix "TN" is added to the bearing No.,the maximum allowable
  working themperrature is 120℃ in continuous working and 180℃ in short working.
3.With grease lubrication, 60% of these limiting speed will apply.





轴径Shaft Diameter

轴承型号Bearing Designation

近似重量Mass Approx

外形尺寸Boudary Dimensions

基本额定负荷Basic Load Rating

极限转速Limiting Speed

动Co

静Cor

作为支承滚轮

d

D

B

C

D1

As yoke type track rollers

mm

动Co

静Cor

油润滑Oil

g

mm

N

rpm

15

NUTR15

99

15

35

19

18

20

20500

24500

13900

15300

6500

17

NUTR17

147

17

40

21

20

22

21800

28500

16500

20500

5500

15

NUTR15 42

158

15

42

19

18

20

20500

24500

16800

21800

6500

17

NUTR17 47

220

17

47

21

20

20

21800

28500

19000

25000

5500

20

NUTR20

245

20

47

25

24

27

36900

48900

26000

33500

4200

20

NUTR20 52

321

20

52

25

24

27

36900

48900

29800

39800

4200

25

NUTR25

281

25

52

25

24

31

40800

58500

27500

35000

3400

25

NUTR25 62

450

25

62

25

24

31

40800

58500

32500

47800

3400

30

NUTR30

465

30

62

29

28

38

56800

77500

39500

49500

2600

30

NUTR30 72

697

30

72

29

28

38

56800

77500

46000

62800

2600

35

NUTR35

630

35

72

29

28

44

63000

91000

42500

59000

2100

35

NUTR35 80

836

35

80

29

28

44

63000

91000

49500

70500

2100

40

NUTR40

816

40

80

32

30

51

87900

108000

54000

73600

1600

45

NUTR45

883

45

85

32

30

55

93600

119000

54000

77500

1400

40

NUTR40 90

1129

40

90

32

30

51

87900

108000

63800

93600

1600

50

NUTR50

950

50

90

32

30

60

98900

140000

55900

79000

1300

45

NUTR45 100

1396

45

100

32

30

55

93600

119000

70500

106000

1400

50

NUTR50 110

1690

50

110

32

30

60

98900

140000

73600

118000

1300

轴径Shaft Diameter

轴承型号Bearing Designation

外形尺寸Boudary Dimensions

基本额定负荷Basic Load Rating

极限转速Limiting Speed

动Co

静Cor

作为支承滚轮

As yoke type track rollers

无内圈without inner ring

带内圈with inner ring

D

d

Fw

B

C

动Co

静Cor

油润滑Oil

mm

mm

N

rpm

6

RNA 22/6.2RS

NA 22/6.2RS

19

6

10

12

11.8

5300

4650

3900

3700

18000

RNA 22/6.2RS X

NA 22/6.2RS X

19

6

10

12

11.8

5300

4650

3900

3700

18000

8

RNA 22/8.2RS

NA22/8.2RS

24

8

12

12

11.8

5700

5400

4800

4800

14000

RNA 22/8.2RS X

NA22/8.2RS

24

8

12

12

11.8

5700

5400

4800

4800

14000

10

RNA 2200.2RS

NA2200.2RS

30

10

14

14

13.8

7800

8300

7000

8000

11000

RNA 2200.2RS X

NA2200.2RS X

30

10

14

14

13.8

7800

8300

7000

8000

11000

12

RNA 2201.2RS

NA2201.2RS

32

12

16

14

13.8

8700

9900

7500

9000

9500

RNA 2201.2RS X

NA2201.2RS X

32

12

16

14

13.8

8700

9900

7500

9000

9500

15

RNA 2202.2RS

NA2202.2RS

35

15

20

14

13.8

9800

12300

7600

9600

7000

RNA 2202.2RS X

NA2202.2RS X

35

15

20

14

13.8

9800

12300

7600

9600

7000

17

RNA 2203.2RS

NA2203.2RS

40

17

22

16

15.8

12200

16700

9900

13800

6000

RNA 2203.2RS X

NA2203.2RS X

40

17

22

16

15.8

12200

16700

9900

13800

6000

20

RNA 2204.2RS

NA2204.2RS

47

20

25

18

17.8

18900

22300

15200

18300

4600

RNA 2204.2RS X

NA2204.2RS X

47

20

25

18

17.8

18900

22300

15200

18300

4600

25

RNA 2205.2RS

NA2205.2RS

52

25

30

18

17.8

21100

27000

15700

20000

3500

RNA 2205.2RS X

NA2205.2RS X

52

25

30

18

17.8

21100

27000

15700

20000

3500

30

RNA 2206.2RS

NA2206.2RS

62

30

35

20

19.8

23300

32000

18300

25500

2800

RNA 2206.2RS X

NA2206.2RS X

62

30

35

20

19.8

23300

32000

18300

25500

2800

35

RNA 2207.2RS

NA2207.2RS

72

35

42

23

22.7

30000

46500

23000

35500

2200

RNA 2207.2RS X

NA2207.2RS X

72

35

42

23

22.7

30000

46500

23000

35500

2200

40

RNA 2208.2RS

NA2208.2RS

80

40

48

23

22.7

38500

58000

27500

40500

1700

RNA 2208.2RS X

NA2208.2RS X

80

40

48

23

22.7

38500

58000

27500

40500

1700

45

RNA 2209.2RS

NA2209.2RS

85

45

52

23

22.7

40500

64000

28500

43000

1600

RNA 2209.2RS X

NA2209.2RS X

85

45

52

23

22.7

40500

64000

28500

43000

1600

50

RNA2210.2RS

NA2210.2RS

90

50

58

23

22.7

42500

70000

28000

42500

1300

RNA 2210.2RS X

NA2210.2RS X

90

50

58

23

22.7

42500

70000

28000

42500

1300
